kubernetes 1.12.1 高可用安装之keepalived

发布时间:7年前热度: 3805 ℃评论数:

KeepAlived 是一个高可用方案,通过 VIP(即虚拟 IP)和心跳检测来实现高可用。其原理是存在一组(两台)服务器,分别赋予 Master、Backup 两个角色,默认情况下Master 会绑定VIP 到自己的网卡上,对外提供服务。Master、Backup 会在一定的时间间隔向对方发送心跳数据包来检测对方的状态,这个时间间隔一般为 2 秒钟,如果Backup 发现Master 宕机,那么Backup 会发送ARP 包到网关,把VIP 绑定到自己的网卡,此时Backup 对外提供服务,实现自动化的故障转移,当Master 恢复的时候会重新接管服务。非常类似于路由器中的虚拟路由器冗余协议(VRRP)

开启路由转发,这里我们定义虚拟IP为:10.80.4.200

 vi /etc/sysctl.conf
# 添加以下内容
net.ipv4.ip_forward = 1
net.ipv4.ip_nonlocal_bind = 1

# 验证并生效
 sysctl -p
# 验证是否生效
 cat /proc/sys/net/ipv4/ip_forward
1

安装keepalived:

 yum install -y keepalived

我们这里将master01 设置为Master,master02 设置为Backup,配置如下:

master配置:

[root@master01 ~]# cat /etc/keepalived/keepalived.conf

global_defs {

   notification_email {

   root@localhost

  }

   notification_email_from keepalived@localhost

   smtp_server 127.0.0.1

   smtp_connect_timeout 30

   router_id k8s-1

   vrrp_mcast_group4 224.0.100.12

}


vrrp_script chk_K8s {

    script "killall -0 kube-apiserver "

    interval 3

    weight -20

}


vrrp_instance VI_1 {

    state MASTER

    interface eth0

    virtual_router_id 61

    priority 115

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass zhl123

    }

    virtual_ipaddress {

        10.80.4.200/24

    }

    track_script {

        chk_K8s

    }

}

backup节点配置:

[root@master02 ~]# cat /etc/keepalived/keepalived.conf

global_defs {

   notification_email {

   root@localhost

  }

   notification_email_from keepalived@localhost

   smtp_server 127.0.0.1

   smtp_connect_timeout 30

   router_id k8s-2

   vrrp_mcast_group4 224.0.100.12

}


vrrp_script chk_K8s {

    script "killall -0 kube-apiserver "

    interval 3

    weight -20

}


vrrp_instance VI_1 {

    state BACKUP

    interface eth0

    virtual_router_id 61

    priority 100

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass zhl123

    }

    virtual_ipaddress {

        10.80.4.200/24

    }

    track_script {

        chk_K8s

    }

}

启动keepalived:

 systemctl start keepalived &systemctl enable keepalived

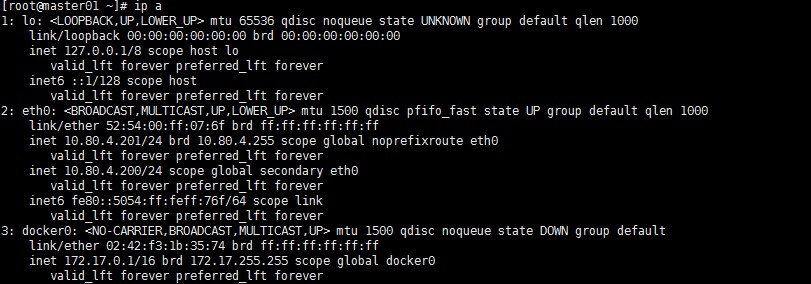

验证apiserver:关闭master01 节点上的kube-apiserver 进程,然后查看虚拟ip是否漂移到了master02 节点。
